Bayesian methods for performing inference using neural networks¶

Tom Charnock

Institut d'Astrophysique de Paris

Neural networks for parameter regression¶

What is a neural network?¶

An arbitrary, non-linear function $(\mathscr{f}:\mathbb{R}^{\bf d}\rightarrow\mathbb{R}^\boldsymbol{t})$ with fittable parameters $(\boldsymbol{w})$

Let's talk about parameter estimation by regression¶

Take in data and predict model parameters

Extremely popular for cosmological parameter estimation¶

Only provide intrinsically biased estimates!¶

Some stats¶

A model¶

The generator $({\bf d}\in\mathcal{M}(\boldsymbol{\theta}))$ of data $({\bf d})$ with model parameters $(\boldsymbol{\theta})$

The likelihood and the posterior¶

Likelihood $\mathcal{L}({\bf d}|\boldsymbol{\theta}^*)$
What is the probability that the model generates data ${\bf d}$ given a set of model parameters $\boldsymbol{\theta}^*$?

Posterior $\mathcal{P}(\boldsymbol{\theta}|{\bf d}^*)$
What is the probability that model parameters $\boldsymbol{\theta}$ generate the data ${\bf d}^*$?

Fisher information¶

How much information does the data ${\bf d}$ contain about the model parameters $\boldsymbol{\theta}$?

$${\bf F}_{\alpha\beta} = \left.\left\langle\frac{\partial^2\ln\mathcal{L}({\bf d}|\boldsymbol{\theta})}{\partial\theta_\alpha\partial\theta_\beta}\right\rangle\right|_{\boldsymbol{\theta}=\boldsymbol{\theta}^*}$$
For a Gaussian
$${\bf F}_{\alpha\beta} = \frac{\partial\mu}{\partial\theta_\alpha}^T{\bf C}^{-1}\frac{\partial\mu}{\partial\theta_\beta}.$$

Maximum likelihood estimates¶

Which value of the model parameters $\boldsymbol{\theta}$ is most likely to generate the observed population of data $\{{\bf d}\}$?

$$\mathcal{L}(\{{\bf d}\}|\boldsymbol{\theta}_\textsf{MLE})=\underset{\boldsymbol{\theta}\in\boldsymbol{\Theta}}{\textsf{Sup}}~\mathcal{L}(\{{\bf d}\}|\boldsymbol{\theta})$$

Intrinsically biased estimators¶

Intrinsically biased estimators

A summary of the parameters which is conditioned on the wrong likelihood.

Training a network¶

Neural network is a model $\mathcal{M}(\boldsymbol{w}, {\bf d})$ with parameters $\boldsymbol{w}$ and initial conditions ${\bf d}$.

Training amounts to finding the maximum likelihood estimates of the weights for a chosen cost function $\boldsymbol{l}$.

$$\mathcal{L}(\boldsymbol{l}\,|\boldsymbol{w}_\textsf{MLE}, {\bf d})=\underset{\boldsymbol{w}\in\boldsymbol{W}}{\textsf{Sup}}~\mathcal{L}(\boldsymbol{l}\,|\boldsymbol{w}, {\bf d})$$

Why do neural networks give intrinsically biased estimates?¶

The likelihood surface is not knowably convex (or concave)¶

The likelihood surface is conditional on the architecture and the data

There is no known correct minimum which is complete for all data¶

Even well converged networks are unknowably biased¶

In general outputs are highly informative¶

Outputs can look like model parameter estimates

They cannot be trusted as true predictions of the parameters

The can be used as informative summaries!

How can we use a neural network safely?¶

Build it into the physical model¶

Likelihood-free inference using machine learning¶

Approximate Bayesian computation¶

Why even introduce a neural network?¶

The curse of dimensionality¶

Inadequate sampling¶

Impossibly large numbers of simulations become necessary to correctly sample the posterior

We need to do some compression¶

Any pretrained neural network could be used¶

Is there a well motivated choice?¶

Information maximising neural networks¶

Which function $\mathscr{f}: \mathbb{R}^{\bf d}\to \mathbb{R}^\boldsymbol{\theta}$ maximises the Fisher information of the summaries ${\bf x}$ from that function?

$$\mathcal{L}({\bf d}|\boldsymbol{\theta})\to\mathcal{L}({\bf x}|\boldsymbol{\theta}, {\bf d})$$

Fisher information of the network summaries¶

Simulations $\{{\bf d}_i|i\in[1, n_{\bf d}]\}$ at a single parameter value $\boldsymbol{\theta}^*$¶

Seed matched simulations $\{{\bf d}_i^{\pm}|i\in[1, n_{\bf p}]\}$ at perturbed fiducial paremeters $\Delta\boldsymbol{\theta}^\pm=\boldsymbol{\theta}\pm\boldsymbol{\delta}$¶

Calculate the covariance¶

Calculate the derivative of the mean of the summaries with respect to the parameters¶

Calculate the Fisher information¶

$${\bf F}_{\alpha\beta}=\frac{\partial\mu_\mathscr{f}}{\partial\theta_\alpha}^T{\bf C}^{-1}_\mathscr{f}\frac{\partial\mu_\mathscr{f}}{\partial\theta_\beta}$$

This Gaussian form forces the summaries to be Gaussianised¶

Makes a non-linear mapping of (non-Gaussian) data to the compressed set of Gaussian summaries

Optimise the tunable parameters of the network such that $\textsf{ln}|{\bf F}_{\alpha\beta}|$ is maximised!¶

Once converged the network compresses and Gaussianises the data without losing information*¶

*in the optimal case...

And we get free maximum likelihood estimates...¶

$$\boldsymbol{\theta}^\textsf{MLE}_\alpha=\boldsymbol{\theta}_\alpha^*+{\bf F}_{\alpha\beta}^{-1}{\bf C}_\mathscr{f}^{-1}\frac{\partial\mu_\mathscr{f}}{\partial\theta_\beta}({\bf x}-\mu_\mathscr{f})$$

And we can get free approximations of the posterior¶

$$\textsf{Cov}[\boldsymbol{\theta}_\alpha^\textsf{MLE},\boldsymbol{\theta}_\beta^\textsf{MLE}] \ge {\bf F}_{\alpha\beta}^{-1}$$

Or do likelihood-free inference¶

We pass our observed data through the network
(put it to the side)

Draw simulations (cleverly?) from the prior model parameters, $\mathcal{P}(\boldsymbol{\theta})$ and pass them through the network¶

Measure the difference between the summarised simulations and the observed summary¶

Compare distance between observed summaries and simulation summaries and select results within $\epsilon$

Conclusions¶

Neural networks are not to be trusted¶

They can make trusty companions - when the correct framework is introduced¶

Using statistics we can build them into the forward model to give us lossless summaries¶

Great, but is there something better?¶

We could infer the neural network...¶

without any training data¶

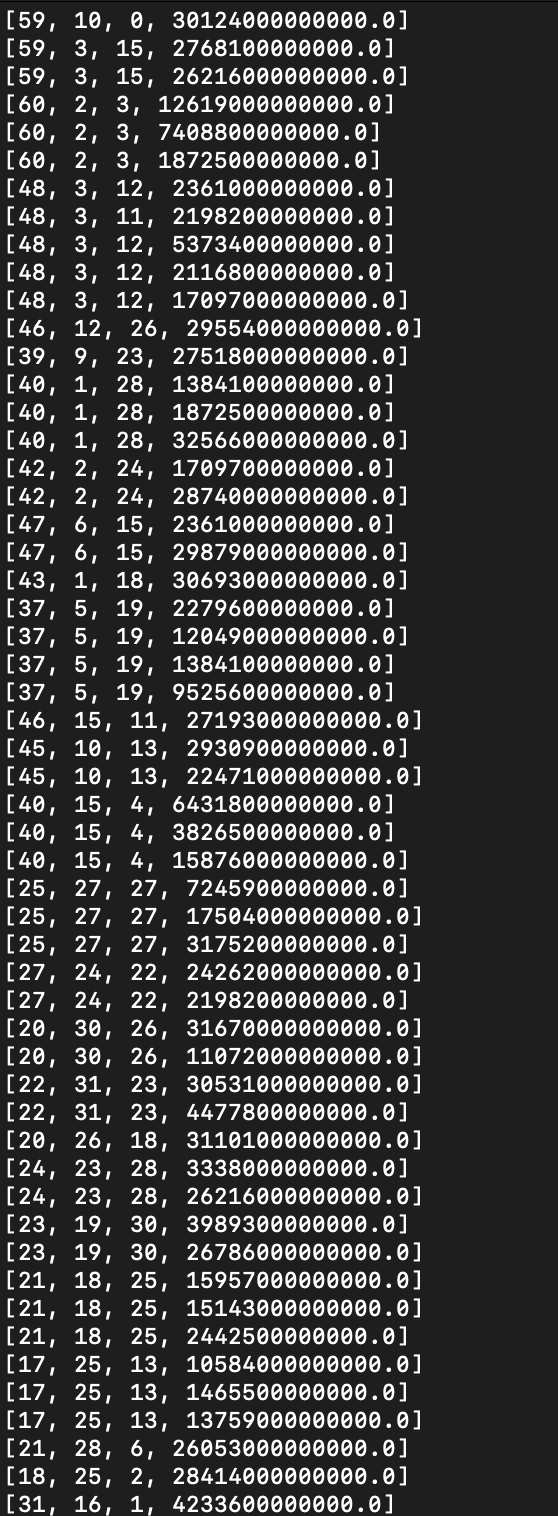

Our observation¶

What does our observation actually look like¶

What does our observation actually actually look like¶

What do we need to infer the parameters of a neural network?¶

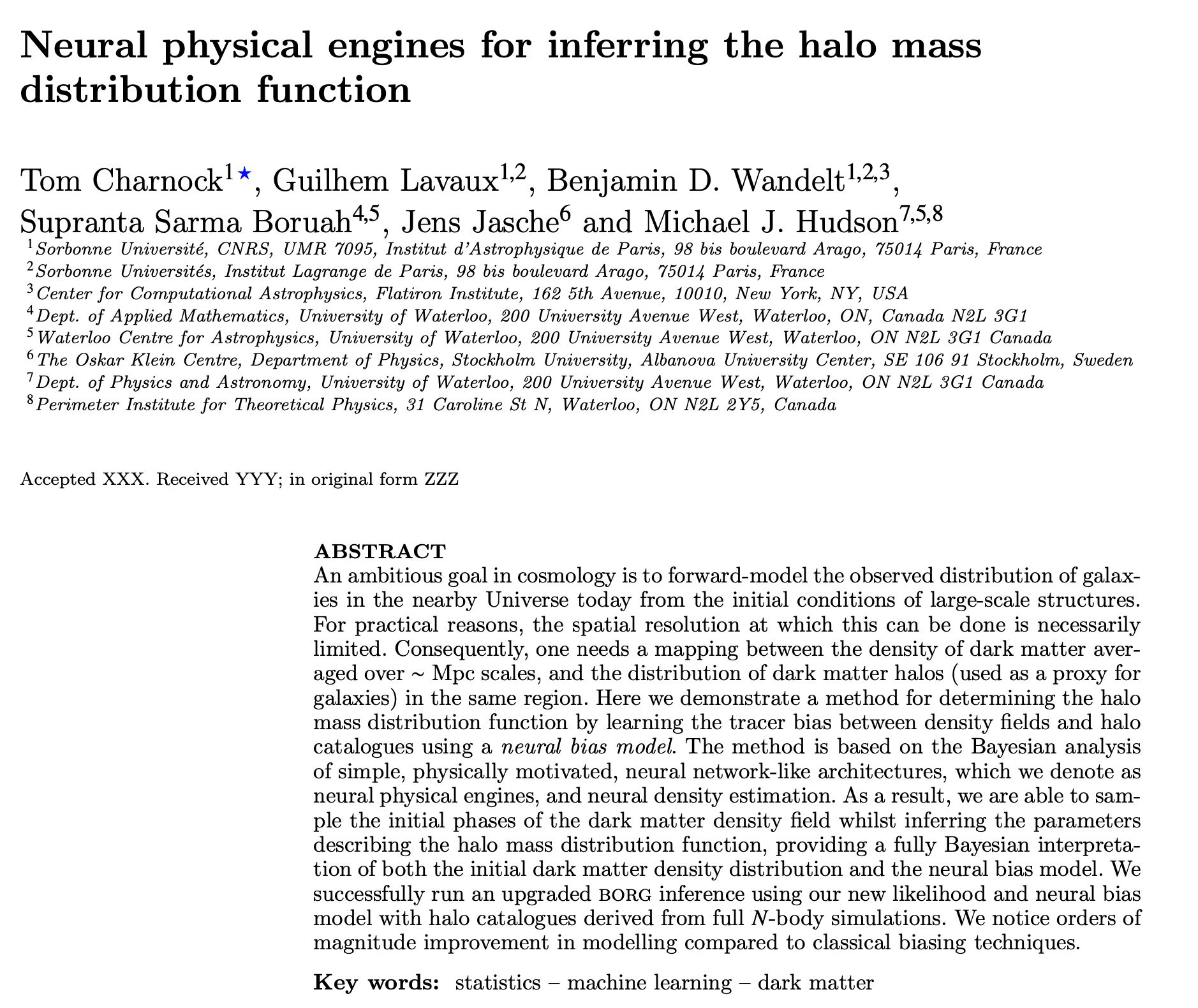

Neural physical engines¶

Build networks using physical principles.

Reduces number of parameters
Increases computational efficiency
Decreases overfitting
Improves interpretability

Convolutions for translational invariance¶

Use only causally relevant features¶

Use only informative features¶

_{github:multipole_kernels}

Neural density estimators¶

Halo mass distribution function is a smooth function of mass given a density environment¶

Use a mixture density network¶

Our neural density estimator¶

$$\begin{align*} {\tiny n(M|\delta) =}&{\tiny \sum_i^N\alpha(\boldsymbol{\psi}, \boldsymbol{\theta}_i^{\boldsymbol{\alpha}})\mathcal{N}\left(\mu(\boldsymbol{\psi}, \boldsymbol{\theta}_i^{\boldsymbol{\mu}}), \sigma(\boldsymbol{\psi}, \boldsymbol{\theta}_i^{\boldsymbol{\sigma}})|M\right),}\\ {\tiny =}&{\tiny \sum_i^N\frac{\alpha(\boldsymbol{\psi}, \boldsymbol{\theta}_i^{\boldsymbol{\alpha}})}{\sqrt{2\pi\left(\sigma(\boldsymbol{\psi}, \boldsymbol{\theta}_i^{\boldsymbol{\sigma}})\right)^2}}\exp\left[-\frac{\left(\log(M) - \mu(\boldsymbol{\psi}, \boldsymbol{\theta}_i^{\boldsymbol{\mu}})\right)^2}{2\left(\sigma(\boldsymbol{\psi}, \boldsymbol{\theta}_i^{\boldsymbol{\sigma}})\right)^2}\right],}\end{align*} $$

$$ \begin{align*} {\tiny\alpha_i} & {\tiny=\text{softplus}(w_{i}^\alpha\boldsymbol{\psi}+b^\alpha_i),}\\ {\tiny\mu_i }&{\tiny = \left\{\begin{array}{ll} w_{i}^\mu\boldsymbol{\psi}+b^\mu_i&i=0\\ \textrm{Max}\left[0,~ w_{i}^\mu\boldsymbol{\psi}+b^\mu_i\right]+\mu_{i-1}&i>0\\ \end{array}\right.,}\\ {\tiny\sigma_i} &{\tiny = \text{softplus}(w_{i}^\sigma\boldsymbol{\psi}+b^\sigma_i)\;,} \end{align*} $$

_{2 Gaussians with
${\Tiny\boldsymbol{b}^\alpha \to \boldsymbol{b}^\alpha +\log(10^{-3})}$, ${\Tiny b_0^\mu \to b_0^\mu + \log\left(2\times10^{12}\right)}$ and ${\Tiny\boldsymbol{b}^\sigma\to \boldsymbol{b}^\alpha + \log(10^3)}$.}

Likelihood¶

Poisson likelihood of the observed catalogue given the forward model¶

$$\begin{align*} {\Tiny\mathcal{L} =}&{\Tiny \sum_{j\in\textsf{catalogue}}\log\left[\sum_i^N\frac{\alpha_{i,j}}{\sqrt{2\pi\sigma_{i,j}^2}}\textsf{exp}\left[-\frac{\left(\textsf{ln}(M_j) - \mu_{i,j}\right)^2}{2\sigma_{i,j}^2}\right]\right]}\\ &{\Tiny - V\sum_{j\in\textsf{voxels},i=1}^N\frac{\alpha_{i,j}}{2}\textsf{exp}\left[\frac{\sigma_{i,j}^2}{2}\right]\textsf{erfc}\left[\frac{\textsf{ln}\left(M_\textsf{th}\right) - \mu_{i,j} - \sigma_{i,j}^2}{\sqrt{2\sigma_{i,j}^2}}\right].} \end{align*}$$

HMCLET¶

We want to infer the weights of the neural bias model¶

Hamiltonian Monte Carlo¶

_{Introduce momentum ${\small {\bf p}\leftarrow\mathcal{N}({\bf 0},{\bf M})}$ and solve Hamilton's equations}

$$\begin{align*} {\Tiny\mathcal{H}(\boldsymbol{\theta}, {\bf p}) }&{\Tiny~= \mathcal{V}(\boldsymbol{\theta}) + \mathcal{K}({\bf p})}\\ &{\Tiny~=\mathcal{L}(\boldsymbol{\theta}|\boldsymbol{\delta})-\textsf{ln}\left[\pi(\boldsymbol{\theta})\right]+\frac{1}{2}{\bf p}^T{\bf M}^{-1}{\bf p}} \end{align*}$$ _{Accept samples according to probability} $$\begin{equation*} {\Tiny\alpha = \textsf{Min}\left[\textsf{exp}\left(\Delta\mathcal{H}\right), 1\right]} \end{equation*}$$

Evolve using ${\Tiny\dot{\boldsymbol{\theta}}= {\bf M}^{-1}{\bf p}}$ and ${\Tiny\dot{\bf p}= -\nabla\mathcal{V}(\boldsymbol{\theta})}$

Leapfrog algorithm¶

Acceptance criterion¶

How does this work for neural networks?¶

Likelihood surface is extremely flat and highly degenerate¶

Nearly impossible to know the mass matrix, ${\bf M}$.

Use second order geometric information¶

How well does it work?¶

Sample the weights of the neural bias model¶

✓ Weight values are properly sampled after burn in
✓ NPE acts as a contrast enhancer
